3000kgs Loading Capacity Diesel Powered Forklift 2682 * 2090 * 1225mm

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPCD30
Certification :	CE, BV,SGS,ISO9001
Price :	＄6,900.00-＄10,000.00/unit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5,000 units/year
Delivery Time :	25-30 days

Add to Cart

Product Details
Company Profile

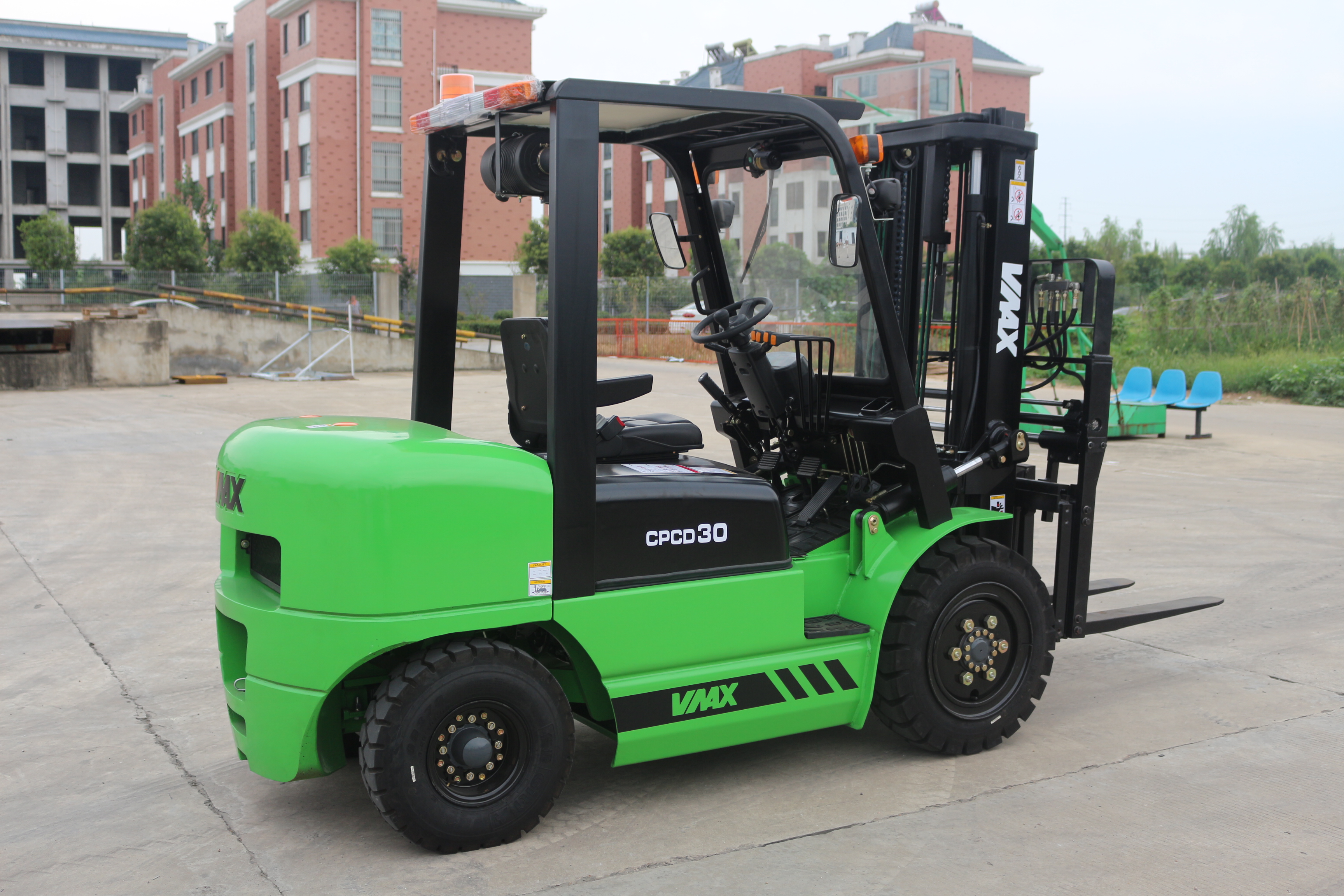

3000kgs Loading Capacity Diesel Powered Forklift 2682 * 2090 * 1225mm

best selling forklift truck CPCD30 diesel engine Vmax in China OEM:

Manufacturer's Data and Desigh Characteristics
Specifications
1	Manufacturer		VMAX
2	Model		Unit	CPCD30
3	Power type			DIESEL
4	Rated capacity		kg	3000
5	Load center		mm	500
6	Operator type			Drive in seat
Size
7	Max. lift height of mast with Load-backrest		mm	4262
8	Max.lift height of fork		mm	3000
9	Height of mast		mm	2065
10	Free lift height(with backrest)		mm	160
11	Height of Load-backrest		mm	1240
12	Distance from seat to overhead guard		mm	1000
13	overhead guard height		mm	2090
14	Length without fork		mm	2682
15	Front overhang		mm	479
16	Rear overhang		mm	495
17	Wheel base		mm	1700
18	The height of traction pin		mm	310
19	Min. ground clearance		mm	135
20	Overall width		mm	1225
21	The distance between forks		mm	1060/250
22	Tread(front /rear)		mm	1000/970
23	Min. Turning radius(outside)		mm	2400
24	Min. Turning radius(inside)		mm	200
25	Min. Intersecting aisle		mm	2380
26	Mast tilt angle		deg	6° / 12°
27	Fork size		mm	107012545
Performance
28	Speeds	Max.Drive speeds(with/without full load)	km/h	18/19
29		Lifting speeds (with /without full load)	mm/s	440/480
30		Lowering speeds(with /without full load)	mm/s	450/500
31	Max. tractive force(with /without full load)		KN	20/16
32	Max.grade ability (with/without full load)		%	20/20
Weight
33	Total weight		kg	4690
34	Weight Distribution full load (front/ rear)		kg	6543/727
35	Weight Distribution zero load(front / rear)		kg	1708/2562
Wheels and Tyres
36	Quantity of wheels			2 X / 2
37	Type of tyres			Air tires
38	Tires	Front		28x9-15-12PR
39		Rear		6.50-10-10PR
40	Driving Brake			hydraumatic pedal
41	Parking Brake			Mechanical manual
Control device for driving and transmitting
42	Battery		V/AH	12/80
43	Engine (standard)	Model		ISUZU C240PKJ-30
44		Rated output	kw/rpm	35.4/2500
45		Rated torque	N.m/rpm	137.7/1800
46		No.of cylinder		4-84X102
47		Displacement	L	2.369
48	Fuel tank capacity		L	60
49	Number of speeds for transmission		power pallet transmission
Words in red could be changeable for your special requirments.
