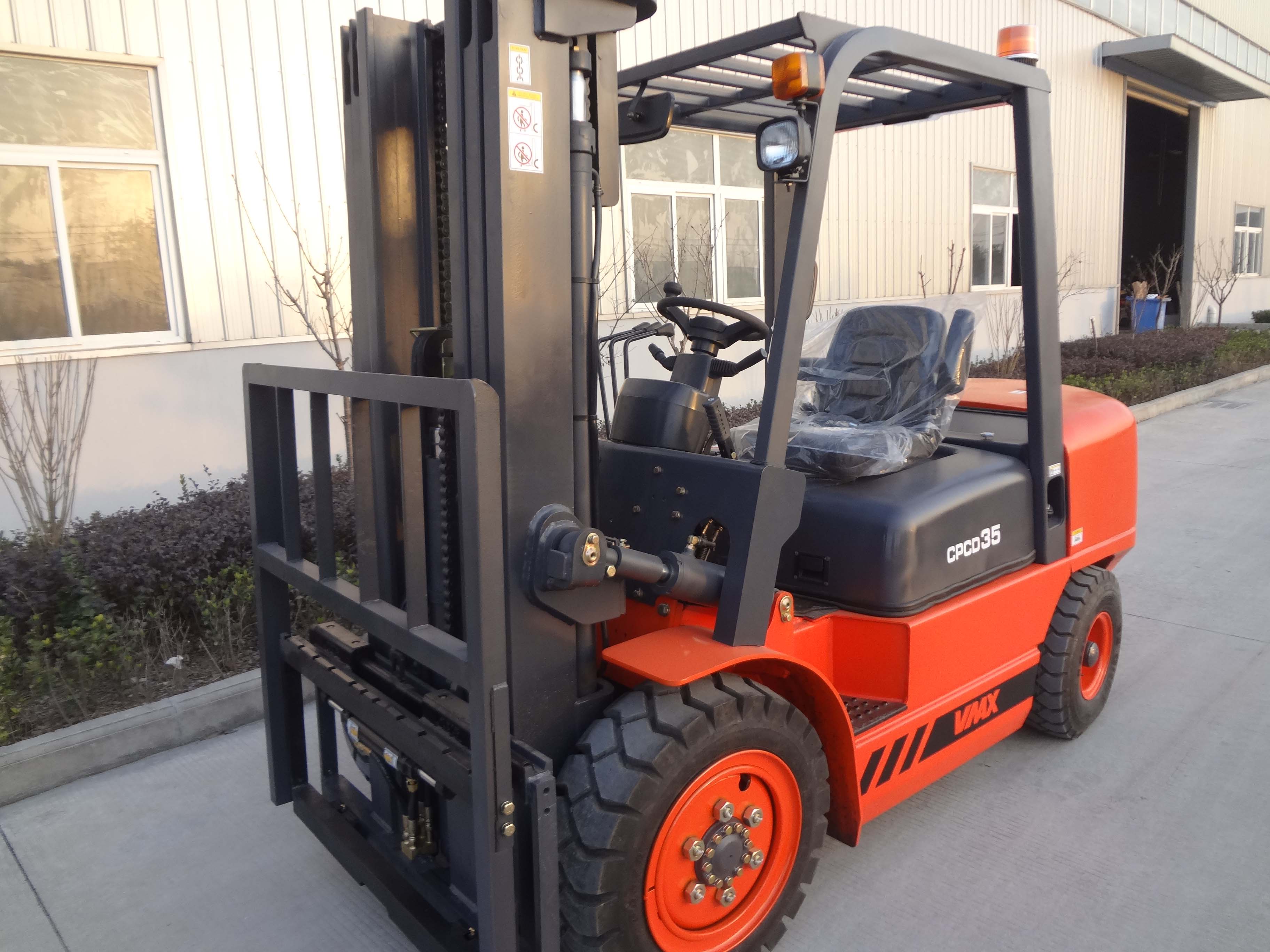

    Vmax 3.5 Tons CPCD35 Diesel Powered Forklift 1070mm Fork Length 125mm Fork Width

    Ask Lasest Price
    Brand Name : VMAX
    Model Number : CPCD35
    Certification : CE, BV,SGS,ISO9001
    Price : $8,000.00-$8,300.00/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5,000 units/year
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    Vmax 3.5 Tons CPCD35 Diesel Powered Forklift 1070mm Fork Length 125mm Fork Width

    Vmax 3.5 tons CPCD35 fork lifter CE EPA Euro3 certificate with Japan diesel engine forklift tcm forklift


    Hot brand FLIFT TRUCK 3.5 ton CPCD35 diesel forklift with automatic transmission FORKLIFT 3.5T,3.5ton Mitsubishi engine forklift soild tyre diesel forklift to South Africa forklift,Supply diesel container forklift truck with 3.5ton forklift,8000bl forklift C240 Isuzu Diesel Engine 3.5Ton Forklift,CE Diesel Forklift 3.5 tons For Sale, Forklift With 4.5m,5500bl forklift C240 Isuzu Diesel Engine 3Ton Forklift,CE Diesel Forklift 2.5 tons For Sale, Forklift With 6m,2.5ton Diesel Powered Forklift With Japanese ISUZU Engine 2500kg diesel forklift,Diesel Forklift 2.5T With adjustable shifter forklift machines China good quality 3.5t 2 Stage Mast Fork Lift With Solid tire Forklift for sale diesel forklift

    2.5ton and 3ton battery operated electric pallet truck /electric pallet forklift

    Automatic diesel forklift truck CPCD25, hot sale forklift 2.5TON

    AS one of the most famous material handling manufactures in China,we specialize in this field for over 10 years, with the strength of diesel forklift , Electric forklift , LPG forklift , reach truck, pullet truck and stacker.

    Now VMAX dealers has been wide spread in many countries like Russia, Australia,Turkey, Brazil, Mexico etc. Also We company had obtained the following certificates in this industry with the development of over 10 years:
    1. CE certificate
    2. ISO 9001:2008 Standard approved
    3. BV&SGS Factory Audit Pass Report
    4. Alibaba golden supplier for 7 years

    Besides, we are always trying to be innovative and have won several patent certificate on forklift in China.

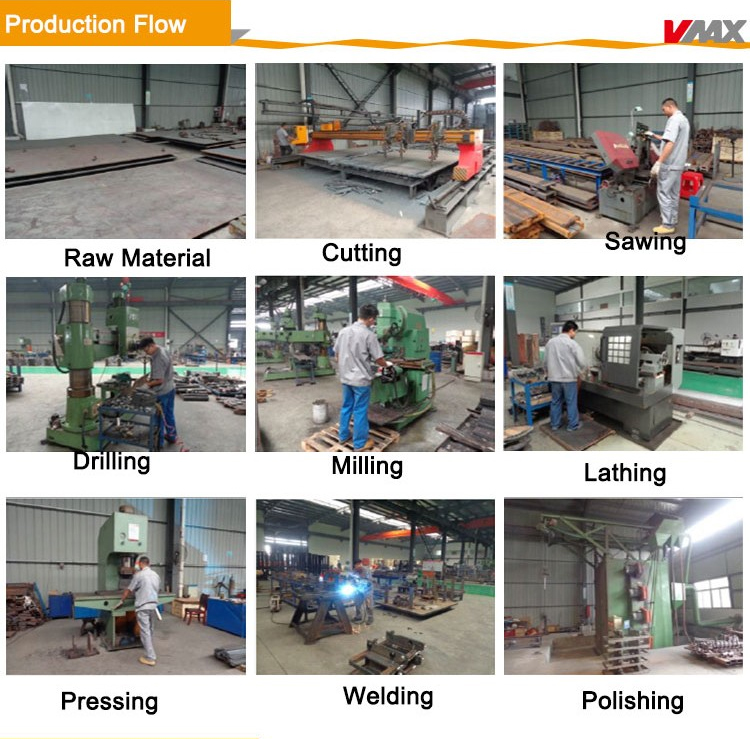

    Currently the factory's capacity per year is 5000 sets(including all sorts of forklift) and averagely the leading production time is 20-30 days. While standing to expand our brand, we also gladly accept OEM based model in which you can pick Japan Engine/Curtis Controller/different forklift attachment and any you like.

    VMAX do more than just selling product, but also provide material handling solution for customer. We're sure that it can satisfy your demand if needed.

    Specifications
    1ManufacturerVMAX
    2ModelUnitCPCD35
    3Power typeDIESEL
    4Rated capacitykg3500
    5Load centermm500
    6Operator typeDrive in seat
    Size
    7Max. lift height of mast with Load-backrestmm4262
    8Max.lift height of forkmm3000
    9Height of mastmm2180
    10Free lift height(with backrest)mm170
    11Height of Load-backrestmm1235
    12Distance from seat to overhead guardmm1000
    13overhead guard heightmm2090
    14Length without forkmm2693
    15Front overhangmm498
    16Rear overhangmm495
    17Wheel basemm1700
    18The height of traction pinmm310
    19Min. ground clearancemm135
    20Overall widthmm1225
    21The distance between forksmm1060/250
    22Tread(front /rear)mm1000/970
    23Min. Turning radius(outside)mm2420
    24Min. Turning radius(inside)mm200
    25Min. Intersecting aislemm2400
    26Mast tilt angledeg6°/12°
    27Fork sizemm1070*125*50
    Performance
    28
    Speeds
    Max.Drive speeds(with/without full load)km/h19/19
    29Lifting speeds (with /without full load)mm/s330/370
    30Lowering speeds(with /without full load)mm/s350/400
    31Max. tractive force(with /without full load)KN20/16.3
    32Max.grade ability (with/without full load)%15/20,16.5/20
    Weight
    33Total weightkg4700
    34Weight Distribution full load (front/ rear)kg7380/820
    35Weight Distribution zero load(front / rear)kg1880/2820
    Wheels and Tyres
    36Quantity of wheels2 X /2
    37Type of tyresPenumatic tyres
    38TiresFront28x9-15-12PR
    39Rear6.50-10-10PR
    40Driving BrakeHydraumatic Pedal
    41Parking BrakeMechanical manual
    Control device for driving and transmitting
    42BatteryV/AH12/80
    43Engine (standard)ModelXINCHAI 495
    44Rated outputkw/rpm42/2650
    45Rated torqueN.m/rpm174/1800-1900
    46No.of cylinder4-95X105
    47DisplacementL2.98
    48Fuel tank capacityL60
    49Number of speeds for transmissionPower pallet transmission/Power shift transmission
