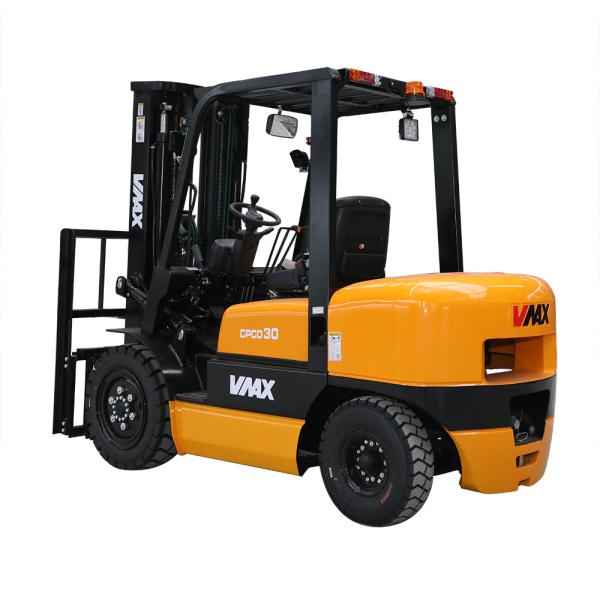

Diesel Engine Heavy Duty Forklift Truck Capacity 3.5t CPCD35 125mm Fork Width OEM

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPCD35
Certification :	CE, BV,SGS,ISO9001
Price :	＄8,000.00-＄10,000.00/unit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5,000 units/year
Delivery Time :	25-30 days

Add to Cart

Product Details
Company Profile

Diesel Engine Heavy Duty Forklift Truck Capacity 3.5t CPCD35 125mm Fork Width OEM

heavy duty forklift truck capacity 3.5t CPCD35 OEM with cert CE, ISO9001, SGS:

Specifications
1	Manufacturer			VMAX
2	Model		Unit	CPCD35
3	Power type			DIESEL
4	Rated capacity		kg	3500
5	Load center		mm	500
6	Operator type			Drive in seat
Size
7	Max. lift height of mast with Load-backrest		mm	4262
8	Max.lift height of fork		mm	3000
9	Height of mast		mm	2180
10	Free lift height(with backrest)		mm	170
11	Height of Load-backrest		mm	1235
12	Distance from seat to overhead guard		mm	1000
13	overhead guard height		mm	2090
14	Length without fork		mm	2693
15	Front overhang		mm	498
16	Rear overhang		mm	495
17	Wheel base		mm	1700
18	The height of traction pin		mm	310
19	Min. ground clearance		mm	135
20	Overall width		mm	1225
21	The distance between forks		mm	1060/250
22	Tread(front /rear)		mm	1000/970
23	Min. Turning radius(outside)		mm	2420
24	Min. Turning radius(inside)		mm	200
25	Min. Intersecting aisle		mm	2400
26	Mast tilt angle		deg	6°/12°
27	Fork size		mm	107012550
Performance
28	Speeds	Max.Drive speeds(with/without full load)	km/h	19/19
29		Lifting speeds (with /without full load)	mm/s	330/370
30		Lowering speeds(with /without full load)	mm/s	350/400
31	Max. tractive force(with /without full load)		KN	20/16.3
32	Max.grade ability (with/without full load)		%	15/20,16.5/20
Weight
33	Total weight		kg	4700
34	Weight Distribution full load (front/ rear)		kg	7380/820
35	Weight Distribution zero load(front / rear)		kg	1880/2820
Wheels and Tyres
36	Quantity of wheels			2 X /2
37	Type of tyres			Penumatic tyres
38	Tires	Front		28x9-15-12PR
39	Tires	Rear		6.50-10-10PR
40	Driving Brake			Hydraumatic Pedal
41	Parking Brake			Mechanical manual
Control device for driving and transmitting
42	Battery		V/AH	12/80
43	Engine (standard)	Model		XINCHAI 495
44		Rated output	kw/rpm	42/2650
45		Rated torque	N.m/rpm	174/1800-1900
46		No.of cylinder		4-95X105
47		Displacement	L	2.98
48	Fuel tank capacity		L	60
49	Number of speeds for transmission			Power pallet transmission/Power shift transmission
