Load Capacity 4500kgs Industrial Lift Truck 1070mm Fork Length Optional Color

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPC45
Certification :	CE, BV,SGS,ISO9001
Price :	＄13,870.00-＄18,500.00/unit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5,000 units/year
Delivery Time :	25-30 days

Add to Cart

Product Details
Company Profile

Load Capacity 4500kgs Industrial Lift Truck 1070mm Fork Length Optional Color

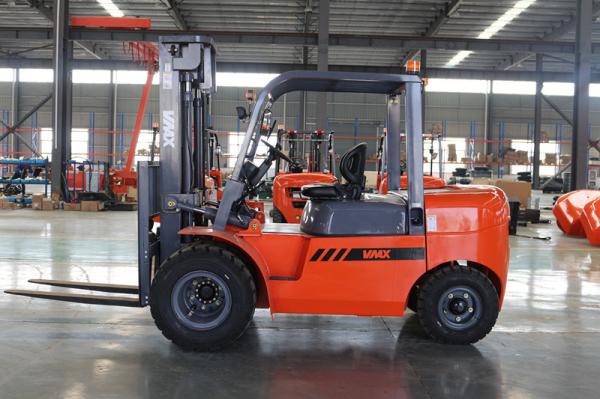

load capacity 4500kgs diesel engine new forklift truck CPC45 for sale:

SPECIFICATIONS of VMAX diesel Forklift
Manufacturer's Data and Desigh Characteristics
Specifications
1	Manufacturer
2	Model		Unit	CPC45
3	Power type			DIESEL
4	Rated capacity		kg	4500
5	Load center		mm	500
6	Operator type
Size
7	Max. lift height of mast with Load-backrest		mm	4280
8	Max.lift height of fork		mm	3000
9	Height of mast		mm	2330
10	Free lift height(with backrest)		mm	150
11	Height of Load-backrest		mm	1195
12	Distance from seat to overhead guard		mm	1000
13	overhead guard height		mm	2290
14	Length without fork		mm	3105
15	Front overhang		mm	565
16	Rear overhang		mm	540
17	Wheel base		mm	2000
18	The height of traction pin		mm	350
19	Min. ground clearance		mm	160
20	Overall width		mm	1480
21	The distance between forks		mm	1370/300
22	Tread(front /rear)		mm	1180/1190
23	Min. Turning radius(outside)		mm	2780
24	Min. Turning radius(inside)		mm	270
25	Min. Intersecting aisle		mm	3365
26	Mast tilt angle		deg
27	Fork size		mm	107015050
Performance
28	Speeds	Max.Drive speeds(with/without full load)	km/h	18/19
29		Lifting speeds (with /without full load)	mm/s	400/450
30		Lowering speeds(with /without full load)	mm/s	350/400
31	Max. tractive force(with /without full load)		KN	20/19
32	Max.grade ability (with/without full load)		%	18/20
Weight
33	Total weight		kg	6400
34	Weight Distribution full load (front/ rear)		kg	9540/1360
35	Weight Distribution zero load(front / rear)		kg	2630/3770
Wheels and Tyres
36	Quantity of wheels
37	Type of tyres
38	Tires	Front		300-15-18PR
39	Tires	Rear		7.00-12-12PR
40	Driving Brake
41	Parking Brake
Control device for driving and transmitting
42	Battery		V/AH	(12/80)*2
43	Engine (standard)	Model		XINCHANG 4D35G
44		Rated output	kw/rpm	48/2200
45		Rated torque	N.m/rpm	230/1600-1800
46		No.of cylinder		4-98X105
47		Displacement	L	3.46
48	Fuel tank capacity		L	80
49	Number of speeds for transmission
