Home > Diesel Powered Forklift >

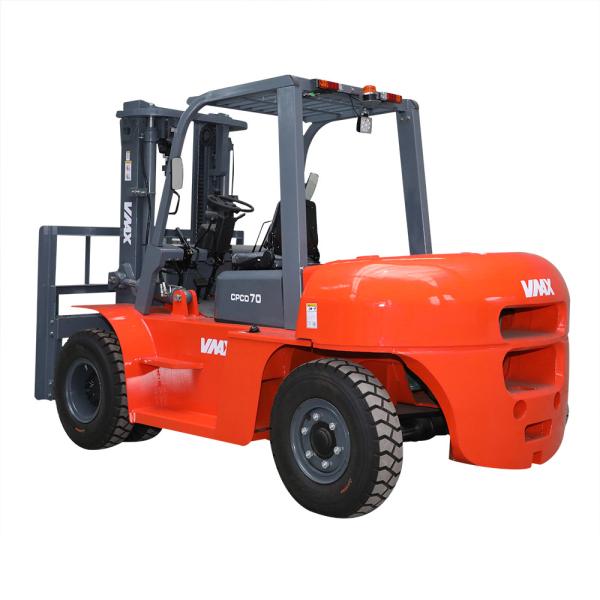

CPCD70 7 Ton Fork Lift Trucks Max Lifting Height 6000mm Big Forklift Truck

Product Categories

ANHUI VMAX TECHNOLOGY CO., LTD

Contact Now

CPCD70 7 Ton Fork Lift Trucks Max Lifting Height 6000mm Big Forklift Truck

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPCD70
Certification :	CE, BV,SGS,ISO9001
Price :	＄18,400.00-＄25,000.00/unit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5,000 units/year
Delivery Time :	25-30 days

Add to Cart

Product Details
Company Profile

CPCD70 7 Ton Fork Lift Trucks Max Lifting Height 6000mm Big Forklift Truck

diesel balance weight CPCD70 7 ton max lifting height 6000mm big forklift truck:

SPECIFICATIONS of VMAX diesel Forklift
Manufacturer's Data and Desigh Characteristics
Specifications
1	Manufacturer
2	Model		Unit	CPCD70
3	Power type			DIESEL
4	Rated capacity		kg	7000
5	Load center		mm	600
6	Operator type
Size
7	Max. lift height of mast with Load-backrest		mm	4380
8	Max.lift height of fork		mm	3000
9	Height of mast		mm	2500
10	Free lift height(with backrest)		mm	205
11	Height of Load-backrest		mm	1372
12	Distance from seat to overhead guard		mm
13	overhead guard height		mm	2450
14	Length without fork		mm	3440
15	Front overhang		mm	590
16	Rear overhang		mm	740
17	Wheel base		mm	2250
18	The height of traction pin		mm	395
19	Min. ground clearance		mm	200
20	Overall width		mm	1995
21	The distance between forks		mm	1840/300
22	Tread(front /rear)		mm	1470/1700
23	Min. Turning radius(outside)		mm	3370
24	Min. Turning radius(inside)		mm	210
25	Min. Intersecting aisle		mm	3040
26	Mast tilt angle		deg
27	Fork size		mm	122015070
Performance
28	Speeds	Max.Drive speeds(with/without full load)	km/h	26/28
29		Lifting speeds (with /without full load)	mm/s	500
30		Lowering speeds(with /without full load)	mm/s	600/300
31	Max. tractive force(with /without full load)		KN	65
32	Max.grade ability (with/without full load)		%	30/18
Weight
33	Total weight		kg	9340
34	Weight Distribution full load (front/ rear)		kg	14560/1780
35	Weight Distribution zero load(front / rear)		kg	3860/5500
Wheels and Tyres
36	Quantity of wheels
37	Type of tyres
38	Tires	Front		8.25-15-14PR
39	Tires	Rear		8.25-15-14PR
40	Driving Brake
41	Parking Brake
Control device for driving and transmitting
42	Battery		V/AH
43	Engine (standard)	Model
44		Rated output	kw/rpm
45		Rated torque	N.m/rpm
46		No.of cylinder
47		Displacement	L
48	Fuel tank capacity		L
49	Number of speeds for transmission

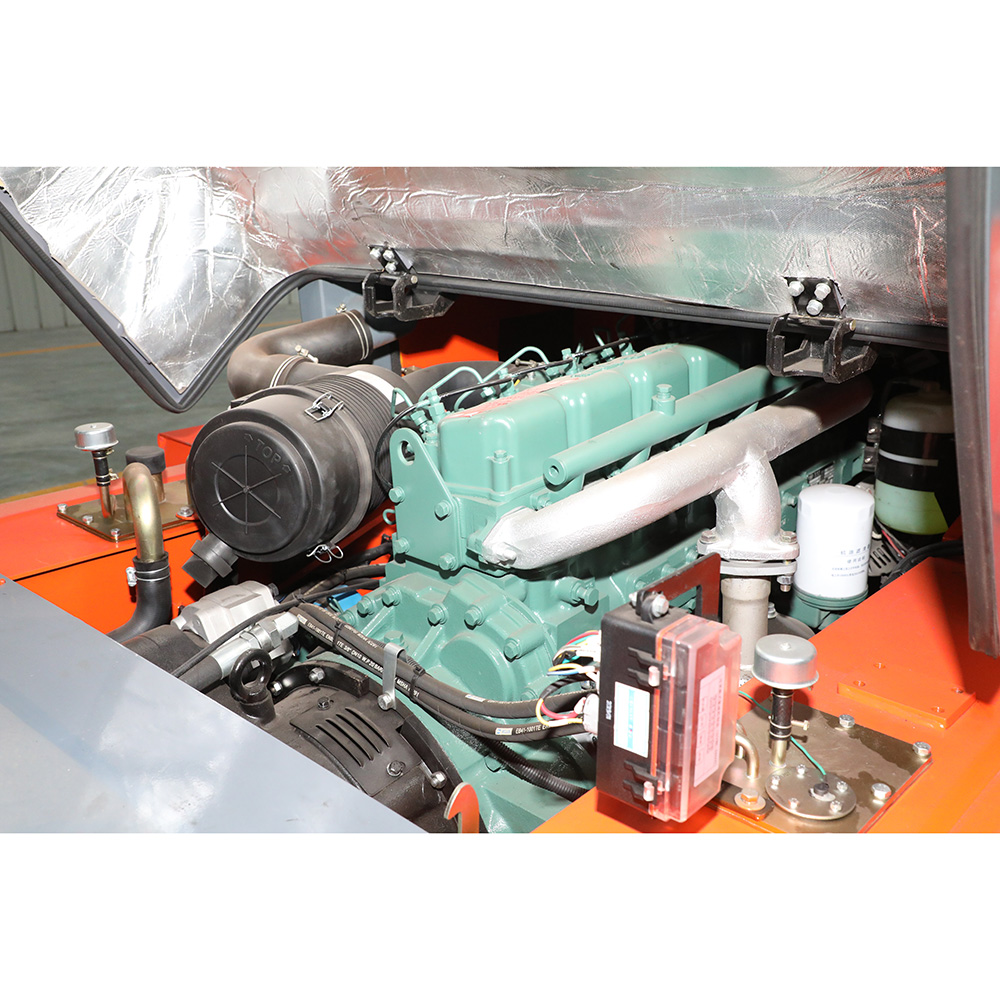

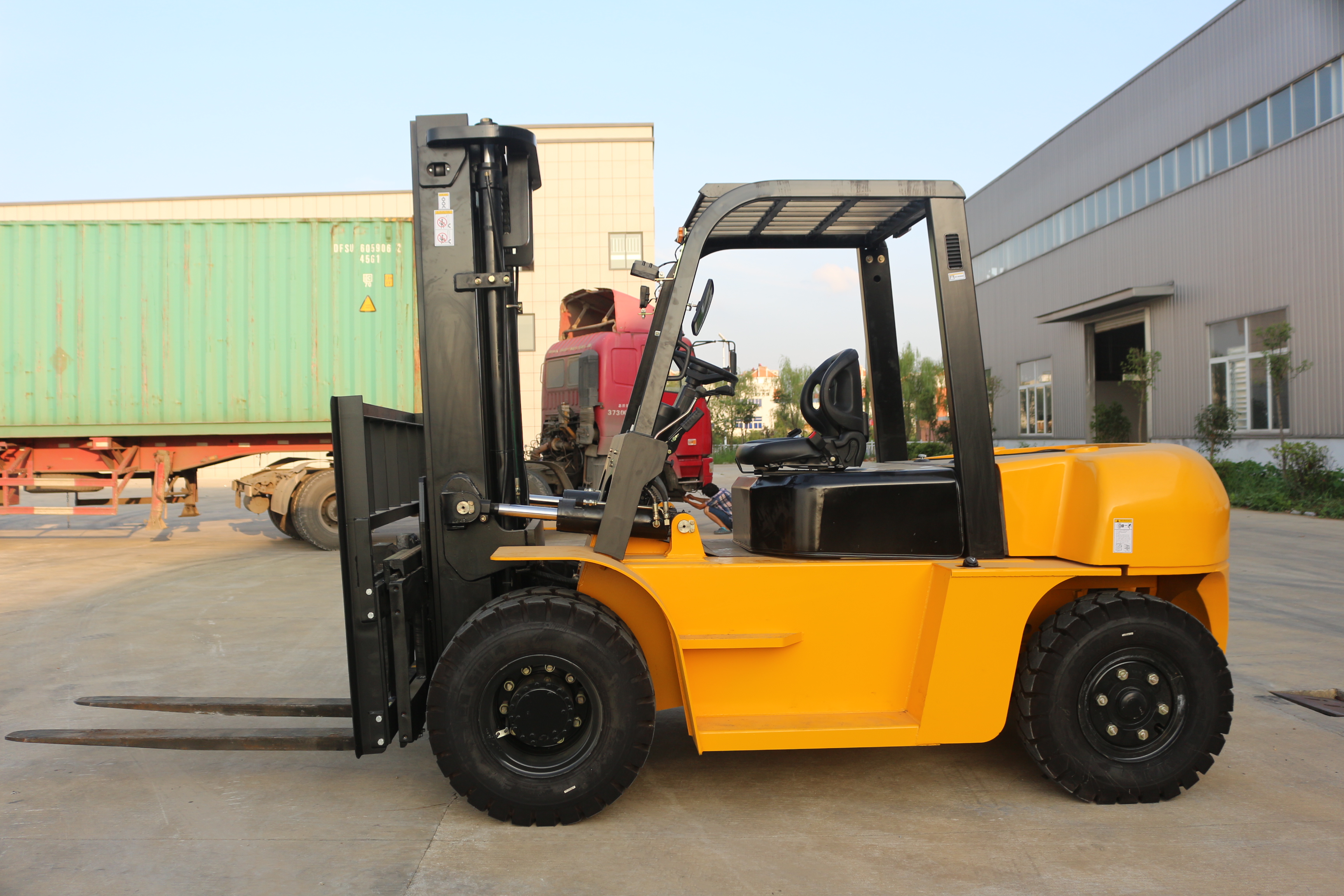

MORE PHOTOS FROM OUR FACTORY:
