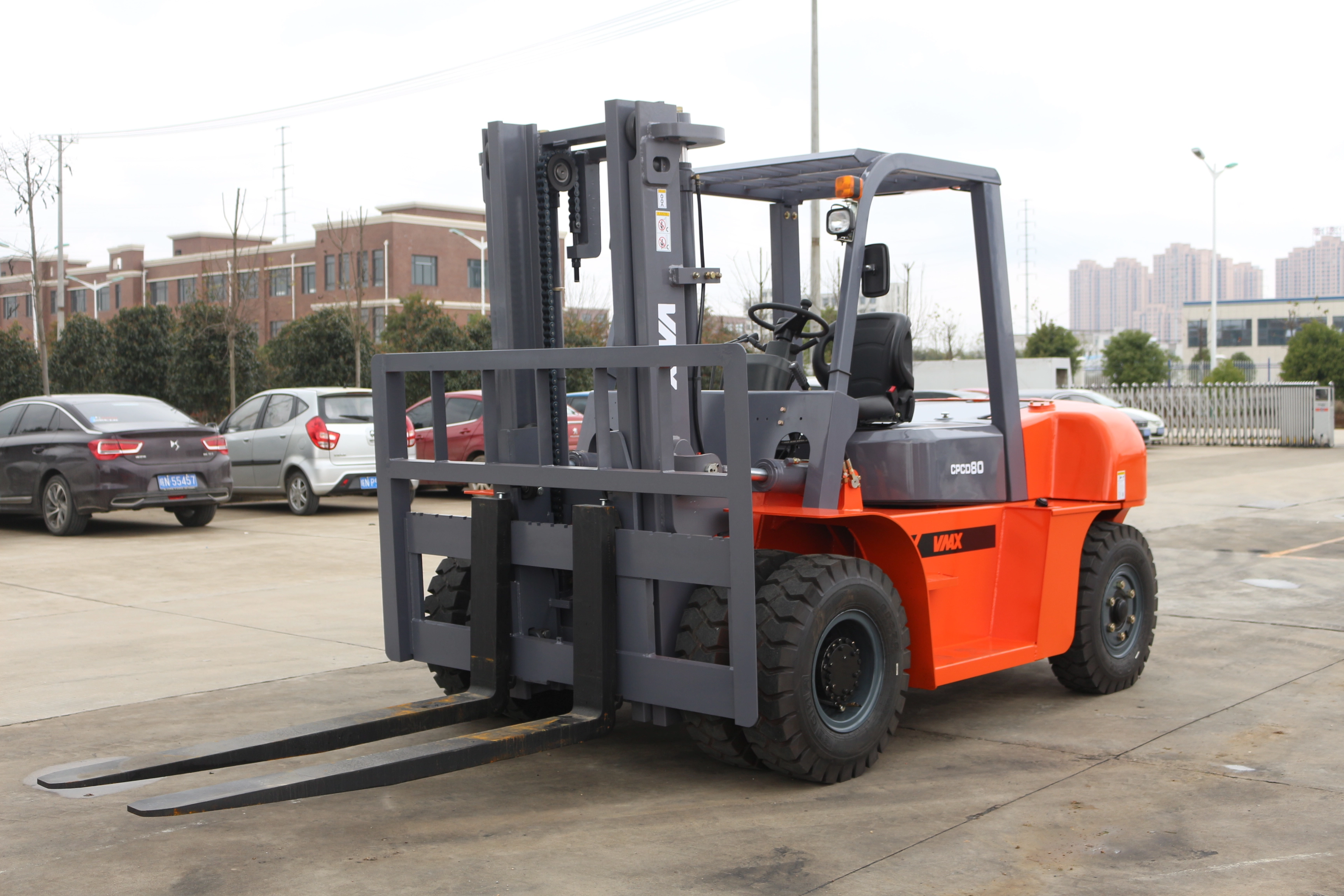

Name: Lifter 8 Ton Diesel Forklift Trucks Fork Lifter Tractor Max Power Building Engine
Brand: VMAX
Price: 1 USD

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPCD80
Certification :	CE,SGS,BV
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000unit / year
Delivery Time :	45 DAYS

Add to Cart

8-10T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
Model		Unit	CPCD80	CPCD100
Power type			Diesel
Rated capacity		kg	8000	10000
Load center		mm	600
Mast Lifting height		mm	3000
Free lift height		mm	205	210
*Fork size(LWT)*		mm	1220×170×70	1220×170×80
Tilting Angles(Front/Rear)		deg	6°/12°
Front overhang		mm	620	718
Exterior Size	Length without fork	mm	3633	4260
	Overall width	mm	1995	2245
	Mast drop	mm	2700	2850
	Max.lift	mm	4420	4325
	Front-wheel Overhead	mm	2450	2585
Min Turning Radius		mm	3400	3900
Min.intersecting aisle		mm	3310	3540
Speeds	Max Driving speeds	km/h	26/30
	Lifting speeds	mm/s	440/470	360/380
	Lowering speeds	mm/s	≤600
Max.grade ability		%	27	22
Total weight		kg	10480	12460
Tires	Front		8.52-15-14PR	9.00-20-14PR
Tires	Rear		8.52-15-14PR	9.00-20-14PR
Wheelbase		mm	2250	2800
Tread	Front	mm	1470	1600
Tread	Rear	mm	1700
Min.ground clearance		mm	250	245
Engine	Model		chaochai6102/xichai6110
	Rated output	kw/rpm	37/2650
	Rated torque	N.m/rpm	148/1800
	No.of cylinder		6
	Displacement	L	5.785
Fuel tank capacity		L	160

brand	vmax
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	Egypt, Germany, Pakistan, Mexico, Malaysia, Australia, Romania
Showroom Location	Italy, Saudi Arabia, Indonesia, Pakistan, Mexico, Algeria
Condition	New
Place of Origin	ANH
Brand Name	vmax
Power Souce	Diesel Engine
Fork Length	1220
Fork Width	150
Overall Dimensions	360019952450
Certification	CE, ISO9001
Warranty	1 Year
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Type	Automatic Diesel Forklift
Engine	Chinese Engine
Capacity	8000kg
Color	Customer Demanded
Load Center	600 Mm
Tire	Solid Tires Optional
Transmission	Automatic Hydraulic Transmission
Fork Size	122012545mm
Mast type	2/3 Stage Mast
