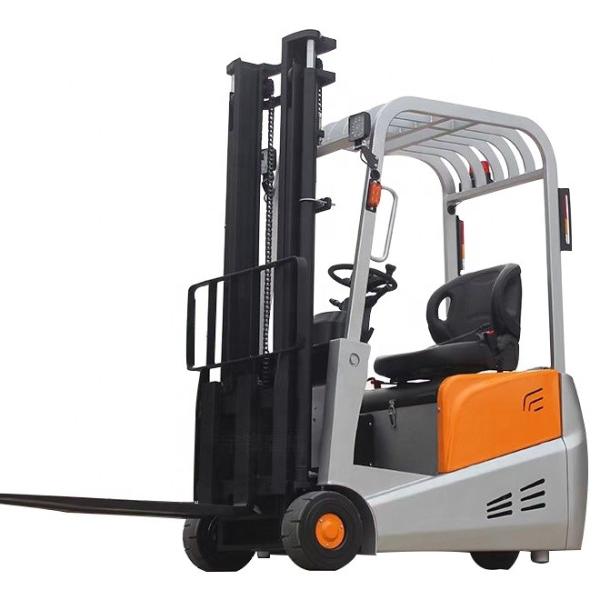

electric 3 wheels pallet forklift 500kg lifting capacity working in floor anhui vmax forklift
| Electric counterbalance weight forklift (3-wheel) |
| Feature | 1.1 | Model No. | | CPD10A | CPD15A |
| 1.4 | Power type | | Full-electric | Full-electric |
| 1.5 | Operation type | | Seated type | Seated type |
| 1.6 | Load capacity | Q(Kg) | 1000 | 1500 |
| 1.7 | Load center | C(mm) | 500 | 500 |
| 1.8 | Front overhang | X(mm) | 196 | 196 |
| 1.9 | wheelbase | Y(mm) | 1130 | 1130 |
| Total weight | 2.1 | Total weight(including battery) | kg | 1700 | 2150 |
| Wheel | 3.1 | Wheel | | Front rubber / rear polyurethane(PU) | Front rubber / rear polyurethane(PU) |
| 3.2 | Rear wheel(Drive wheel) | ∅×w(mm) | ∅230×75 | ∅230×75 |
| 3.3 | Front wheel | ∅×w(mm) | ∅305×127 | ∅305×127 |
| 3.4 | Front wheel distance | mm | 752 | 752 |
| Size | 4.2 | Height-mast lowered | h1(mm) | 2035 | 2035 |
| 4.3 | Free-lifting height | h2(mm) | 0 | 0 |
| 4.4 | Lifting height | h3(mm) | 3000 | 3000 |
| 4.5 | Fork height when fork lifting | h4(mm) | 3918 | 3918 |
| 4.6 | Overhead guards height | h13(mm) | 1930 | 1930 |
| 4.7 | Fork height when mast retracts | h(mm) | 35 | 35 |
| 4.8 | Overall length | l2(mm) | 1587 | 1587 |
| 4.9 | Overall width | b1(mm) | 850 | 850 |
| 4.10 | Fork size | s/e/l(mm) | 35/100/1070 | 35/100/1070 |
| 4.11 | Fork adjustable outside width | b5(mm) | 210-566 | 210-566 |
| 4.12 | Min ground clearence | m2(mm) | 35 | 35 |
| 4.13 | Stacking channel width, 1000×1200 pallet(1200 cross fork placement) | Ast(mm) | 2931 | 2931 |
| 4.14 | Min.turning radius | Wa(mm) | 1425 | 1425 |
| Performance | 5.1 | Travel speed, no load / full load | km/h | 5.2/5 | 5.2/5 |
| 5.2 | Lifting speed, no load / full load | m/s | 0.135/0.095 | 0.135/0.090 |
| 5.3 | Descent speed, no load / full load | m/s | 0.085/0.120 | 0.085/0.120 |
| 5.8 | Max.grade capacity, no load / full load | ％ | 8/6 | 8/6 |
| 5.9 | Brake | | Hydraulic + electromagnetic | Hydraulic + electromagnetic |
| Motor | 6.1 | Drive motor | kw | AC 1.5 | AC 2.5 |
| 6.2 | Lifting motor | kw | DC 2.2 | DC 2.2 |
| 6.4 | Battery capacity | V/Ah | 24V/270Ah | 24V/300Ah |
| Other | 8.1 | Drive controlling type | | AC | AC |
| 8.4 | Driver's ear noise level according to en12053 | dB(A) | 75 | 75 |
ANHUI VMAX TECHNOLOGY CO., LTD
Anhui Vmax Technology Co., Ltd is located in Lu'an, Anhui,China. It
is one of the biggest forklift manufacturers in China, which has
67,000 square meter area workshop and outputs 5,000 sets of
forklifts annually.
We have different kinds of large blazing cutter, plasma cutter,
large punch machine, CNC machining center, large painting machine
and other highclass machines and testing equipment, which ensure
perfect quality of each forklift from VMAX. Now our products
include counterbalance diesel forklift,battery forklift, gas/lpg
forklift, pallet truck, stacker, reach truck, mast mobile container
crane, etc.
With first class technology and stable quality, VMAX products won
the appreciation form majority of overseas customers. Our products
have been exported to Europe, America, the Middle East, Southeast
Asia, Africa and many other countries and regions. More than 400
VMAX members offer you products with topclass service.
