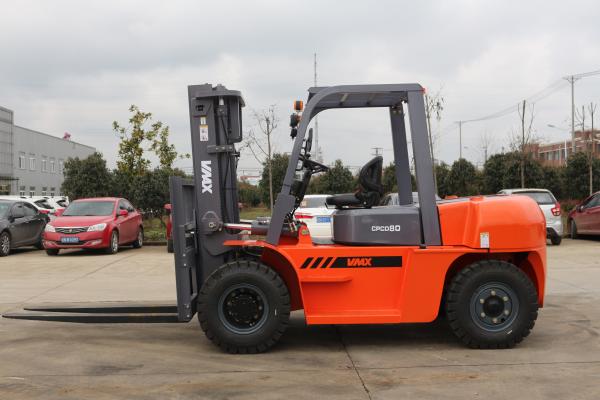

    Compact Structure Diesel Powered Forklift 1220mm Fork Length High Capacity

    Ask Lasest Price
    Brand Name : VMAX
    Model Number : CPCD80
    Certification : CE, BV,SGS,ISO9001
    Price : $21,130.00-$30,000.00/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5,000 units/year
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    Compact Structure Diesel Powered Forklift 1220mm Fork Length High Capacity

    China manufacturer made diesel power truck 8 ton capacity forklift hot sale​​:

    SPECIFICATIONS of VMAX diesel Forklift
    Manufacturer's Data and Desigh Characteristics
    Specifications
    1Manufacturer
    2ModelUnitCPCD80
    3Power typeDIESEL
    4Rated capacitykg8000
    5Load centermm600
    6Operator type
    Size
    7Max. lift height of mast with Load-backrestmm4380
    8Max.lift height of forkmm3000
    9Height of mastmm2500
    10Free lift height(with backrest)mm205
    11Height of Load-backrestmm1372
    12Distance from seat to overhead guardmm
    13overhead guard heightmm2450
    14Length without forkmm3600
    15Front overhangmm590
    16Rear overhangmm740
    17Wheel basemm2250
    18The height of traction pinmm395
    19Min. ground clearancemm200
    20Overall widthmm1995
    21The distance between forksmm1840/300
    22Tread(front /rear)mm1470/1700
    23Min. Turning radius(outside)mm3370
    24Min. Turning radius(inside)mm210
    25Min. Intersecting aislemm3060
    26Mast tilt angledeg
    27Fork sizemm1220*150*75
    Performance
    28
    Speeds
    Max.Drive speeds(with/without full load)km/h26/28
    29Lifting speeds (with /without full load)mm/s480
    30Lowering speeds(with /without full load)mm/s600/300
    31Max. tractive force(with /without full load)KN65
    32Max.grade ability (with/without full load)%28/18
    Weight
    33Total weightkg9850
    34Weight Distribution full load (front/ rear)kg14880/1970
    35Weight Distribution zero load(front / rear)kg4070/5800
    Wheels and Tyres
    36Quantity of wheels
    37Type of tyres
    38TiresFront8.25-15-14PR
    39Rear8.25-15-14PR
    40Driving Brake
    41Parking Brake
    Control device for driving and transmitting
    42BatteryV/AH
    43Engine (standard)Model
    44Rated outputkw/rpm
    45Rated torqueN.m/rpm
    46No.of cylinder
    47DisplacementL
    48Fuel tank capacityL
    49Number of speeds for transmission

    see the details:


    our factory:


    our office:



    Anhui VMAX Heavy Industry Co.,Ltd is the subsidiary of Hengtian Group, and is responsible for the import and export business of VMAX the sales channels and marketing network management, and providing forklifts, spare parts, and after-service to overseas.

    Anhui VMAX Heavy Industry Co.,Ltd is a major enterprise in the forklift truck manufacturing industry in China.VMAX has a complete product range of material handling equipment, from 1-16t internal combustion counterbalance forklift, 1-5t electric counterbalance forklift truck, warehouse equipment, reach stacker and more. Utilizing our state-of-art R&D center, our provincial level technology center, efficient production support system and our strong marketing leading system, more 40 abroad agents, all these offers strong support to our customers.
