counterbalance forklift high reach forklift reach truck forklift
STANDARD INSTALLMENT:

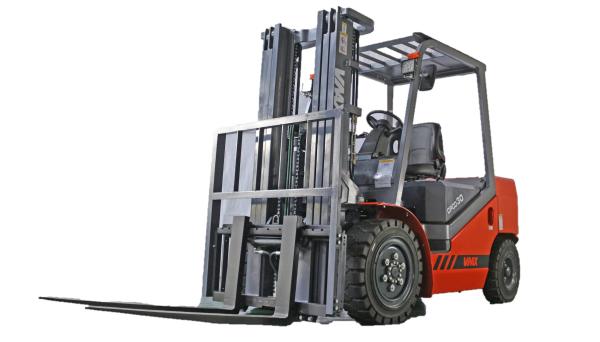

CPCD40: Load capacity 4000kg,hydraulic transmission,3m 2stage
duplex mast,
China engine C498BPG,1070mm fork, Electronic gear transmission, key
switch,
Pneumatic tyres,Safety seat,Free tool box and spare parts.
OPTION:
As a professional manufacturer of forklift, we also can offer you
customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage
full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please
contact with us.
VMAX professional service will be impressed on you.
OTHERS :
A: date of delivery:15-25days after received the deposit
B: payment terms:T/T(30% deposit,balance paid before shipment).Or
L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.
| model | CPCD40-X8 |
| Power type | | diesel |
| Rated capacity | kg | 4000 |
| Load center | mm | 500 |
| Mast Lifting height | mm | 3000 |
| Fork size | Length*Width*Thickness | mm | 1070x150x50 |
| Tilting angles | Front/Rear | . | 6/12 |
| Min. Turning Radius | mm | 2700 |
| Min. intersecting stacking aisle | mm | 4420 |
| Min. intersecting aisle | mm | 2685 |
| Min. ground clearance | mm | 140 |
| Overhead guard height | mm | 2105 |
| Front overhang | mm | 500 |
| Max. driving speeds | km/h | 19.5 |
| Max. lifting speeds | mm/s | 400 |
| Max. grade ability | % | 20 |
| Length without fork | mm | 2895 |
| Overall width | mm | 1410 |
| Max. lift | mm | 4160 |
| Mast height | mm | 2127 |
| Tires | Front | mm | 250-15-16PR |
| Rear | mm | 6.5-10-10PR |
| Wheelbase | mm | 1900 |
| Tread | Front/ Rear | mm | 1160/1065 |
| Self-possessed | Kg | 5310 |
| Battery | Voltage/Volume | V/Ah | 12/105 |
| Engine | Model | | 498BPG |
| Rated output | kw/r.p.m | 45/2500 |
| Rated torque | Nm/r.p.m | 198/1800 |
| No.of cylinder | | 4 |
| Displacement | L | 3.168 |
| Fuel tank capacity | L | 80
|
