Home > Electric Warehouse Forklift >

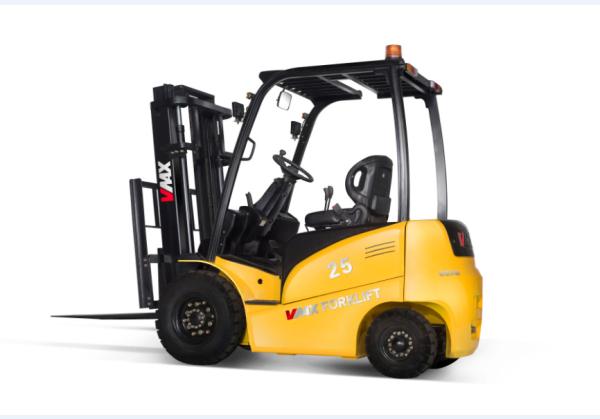

Construction Four Wheel Electric Forklift Truck , Electric Fork Truck 2500KG

Product Categories

ANHUI VMAX TECHNOLOGY CO., LTD

Contact Now

Construction Four Wheel Electric Forklift Truck , Electric Fork Truck 2500KG

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPD25
Certification :	CE ISO
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000unit / year
Delivery Time :	45 DAYS

Add to Cart

Product Details
Company Profile

Construction Four Wheel Electric Forklift Truck , Electric Fork Truck 2500KG

Construction Four Wheel Electric Forklift Truck , Electric Fork Truck 2500KG

Four Wheel Electric Forklift Quick Details

Place of Origin:Anhui, China (Mainland)

Brand Name:Vmax

Model Number:CPD25

Type:Powered Pallet Truck

Power Souce:electric

Rated Loading Capacity:2500KG

Max. Lifting Height:3000mm

Min. Lifting Height:85mm-100mm

Fork Length:920mm,1070mm

Fork Width:122mm

Overall Dimensions:2580*1160*2070mm

Certification:CE ISO

After-sales Service Provided:Engineers available to service machinery overseas

color:nacarat

load center:500mm

Four Wheel Electric Forklift specification:

Specification 2-2.5ton electric forklift trucks
Model		CPD20	CPD25
Load capacity kg		2000	2500
Load center mm		500	500
Power type		Battery Powered(DC/AC)
Max.lifting speeds(with load) mm/s		250	230
Max.Driving speeds(with without load) km/h		12.5/14	12/14
Max.Towing speeds(with load) kN		10	10
Gradeability(with load) %		15	15
Lifting height mm		3000	3000
Free lift mm		60	60
Tilting angles(forward-backward) .		6/12	6/12
Min. turning radius mm		2200	2250
Min. right angle aisle width mm		2050	2100
Min. under-clearance mm		110	110
Dimensions	A Overall length (inincluding fork) mm	3350	3380
	B Overall width mm	1160	1160
	H Overall height(mast lowered) mm	2130	2130
	H2 Overall height(mast extend) mm	4040	4040
H3 Overall height to overhead guard mm		2130	2130
B3 Fork width mm		100	122
H4 Fork thickness mm		40	40
A3 Fork length mm		920(1070)	920(1070)
A1 Fork overhang mm		451	451
A2 Wheel base mm		1550	1550
Tread	Front tread mm	970	970
Tread	Rear tread mm	950	950
Tyre	Front tyre	7.00-12	7.00-12
Tyre	Rear tyre	18×7-8	18×7-8
Total weight kg		3950	4300
Motor	Traction motor	XQ-8	XQ-8
Motor	Lifting motor	XQD-10-3S	XQD-10-3S
Battery	Battery type	D-600(700)	D-700
Battery	Battery voltage/Capacity V/Ah	48/600(700)	48/700

OTHERS :

A: date of delivery:15-25days after received the deposit
B: payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.

Product Tags:

industrial forklift truck

heavy duty forklift

Construction Four Wheel Electric Forklift Truck , Electric Fork Truck 2500KG
