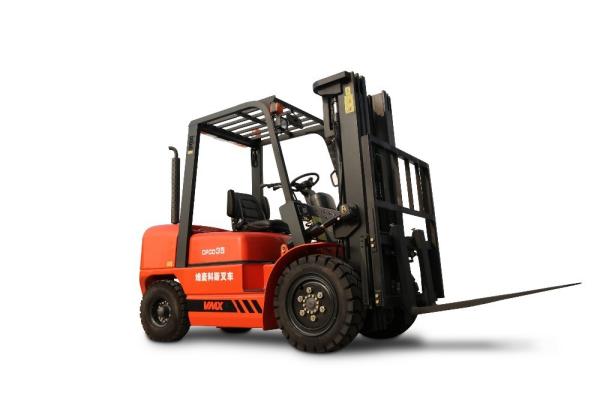

2-3T Diesel Powered Forklift Truck Counterbalance , 3 Wheel Electric Forklift

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPCD30
Certification :	CE,SGS,BV
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000unit / year
Delivery Time :	45 DAYS

Add to Cart

Product Details
Company Profile

2-3T Diesel Powered Forklift Truck Counterbalance , 3 Wheel Electric Forklift

2-3T Diesel Powered Forklift Truck Counterbalance , 3 Wheel Electric Forklift

Our industrial counterbalance forklift has many advantages:

AUTOMATIC electric hydraulic transmission by TCM technology.
Just use your finger can achieve the forklift's forward and backward,
very high-effective and comfortable operation.

original imported American EATON redirector
original imported Japanese hydraulic system
enlarged fuel tank

Our industrial counterbalance forklift specification:


Model		Unit	CPC20/CPCD20	CPC25/CPCD25	CPC30/CPCD30
Power type			Diesel	Diesel	Diesel
Rated capacity		kg	2000	2500	3000
Load center		mm	500	500	500
Mast Lifting height		mm	3000	3000	3000
Free lift height		mm	240	240	175
Fork size(LWT)		mm	920×122×40	1070×125×45	1070×125×45
Tilting Angles(Front/Rear)		deg	6°/12°	6°/12°	6°/12°
Front overhang		mm	485	485	485
Exterior Size	Length without fork	mm	2505	2580	2680
	Overall width	mm	1160	1160	1225
	Mast drop	mm	1995	1995	2065
	Max.lift	mm	4030	4030	4250
	Front-wheel Overhead	mm	2070	2070	2070
Min Turning Radius		mm	2170	2230	2420
Min.intersecting aisle		mm	1900	2000	2100
Speeds	Max Driving speeds	km/h	17.5/20	17.5/20	18.5/20
	Lifting speeds	mm/s	500/530	500/530	470/520
	Lowering speeds	mm/s	540/550	540/550	550/520
Max.grade ability		%	18	18	20
Total weight		kg	3400	3780	4300
Tires	Front		7.00-12-12PR	7.00-12-12PR	28*9-15-12PR
Tires	Rear		6.00-9-10PR	6.00-9-10PR	6.5-10-10PR
Wheelbase		mm	1600	1600	1700
Tread	Front	mm	970	970	1000
Tread	Rear	mm	970	970	970
Min.ground clearance		mm	110	110	110
Engine	Model		490BPG	490BPG	ISUZU C240
	Rated output	kw/rpm	37/2650	37/2650	35.4/2400
	Rated torque	N.m/rpm	148/1800	148/1800	139.9/1800
	No.of cylinder		4	4	4
	Displacement	L	2.54	2.54	2.369
Fuel tank capacity		L	52	52	70
