2.5 Ton Automated Guided Forklift Material Handing Tool With Huge Discount

Product Categories

ANHUI VMAX TECHNOLOGY CO., LTD

Contact Now

Name: 25 Ton Automated Guided Forklift Material Handing Tool With Huge Discount
Brand: VMAX
Price: 1 USD

Ask Lasest Price
Brand Name :	VMAX
Model Number :	CPCD25
Certification :	CE ISO
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000unit / year
Delivery Time :	45 DAYS

Add to Cart

automated guided forklift with 2.5ton forklift truck with huge discount

automated guided forklift Quick Details

Condition:New

Place of Origin:Anhui, China (Mainland)

Brand Name:Vmax

Model Number:CPCD25

Type:Powered Pallet Truck

Power Souce:Diesel Engine

Rated Loading Capacity:2500kg

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:1070mm

Fork Width:125mm

Overall Dimensions:2576*1170*2070mm

Certification:CE

After-sales Service Provided:Engineers available to service machinery overseas

Color:per your request

Weight:3780kg

automated guided forklift specification:

2.5T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
Model		Unit	CPC25/CPCD25
Power type
Rated capacity		kg	2500
Load center		mm	500
Mast Lifting height		mm	3000
Free lift height		mm	240
Fork size(LWT)		mm	1070×125×45
Tilting Angles(Front/Rear)		deg	6°/12°
Front overhang		mm	485
Exterior Size	Length without fork	mm	2580
	Overall width	mm	1160
	Mast drop	mm	1995
	Max.lift	mm	4030
	Front-wheel Overhead	mm	2070
Min Turning Radius		mm	2230
Min.intersecting aisle		mm	2000
Speeds	Max Driving speeds	km/h	17.5/20
	Lifting speeds	mm/s	500/530
	Lowering speeds	mm/s	540/550
Max.grade ability		%	18
Total weight		kg	3780
Tires	Front		7.00-12-12PR
Tires	Rear		6.00-9-10PR
Wheelbase		mm	1600
Tread	Front	mm	970
Tread	Rear	mm	970
Min.ground clearance		mm	110

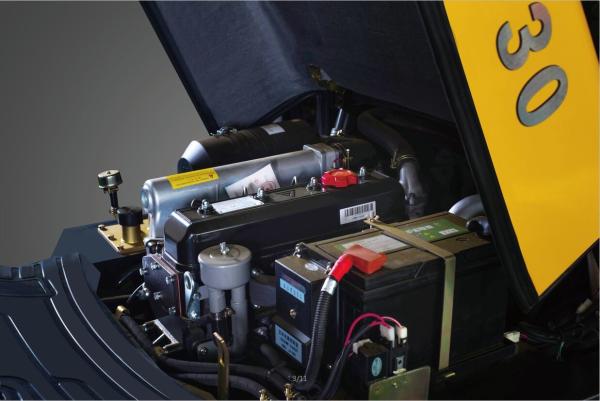

Engine	Model		xinchai490BPG
	Rated output	kw/rpm	37/2650
	Rated torque	N.m/rpm	148/1800
	No.of cylinder		4
	Displacement	L	2.54
Fuel tank capacity		L	52
